MDB-SPY Monitor and track the vending machine MDB data and forwa

MDB-Spy

MDB-SPY Vending protocal data tool is a simple but most useful tool for vending machine project engineers to develop or understand the MDB protocal and data.

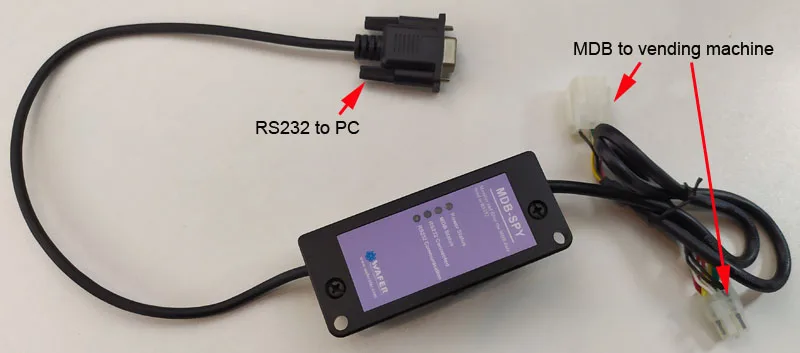

The MDB-Spy only requires a serial (RS232) port and plug the MDB connector onto the vending machine MDB bus line.then will detect all data on the MDB bus and At the same time, the received data is quickly forwarded to RS232 output.

MDB-SPY is powered directly from Vending machine, no need extra power supply

Check the Working video from

http://www.mdb232.com

Very important note:

(Before order,please must confirmed that your vending machine can support the MDB protocal and also the buyer must be an software engineer and must have the ability to learn the MDB protocol, and perform independent analysis based on the MDB raw data received by the serial port. Our company cannot provide more technical support and MDB protocal support. It is up to engineers to understand and analyze MDB data.)

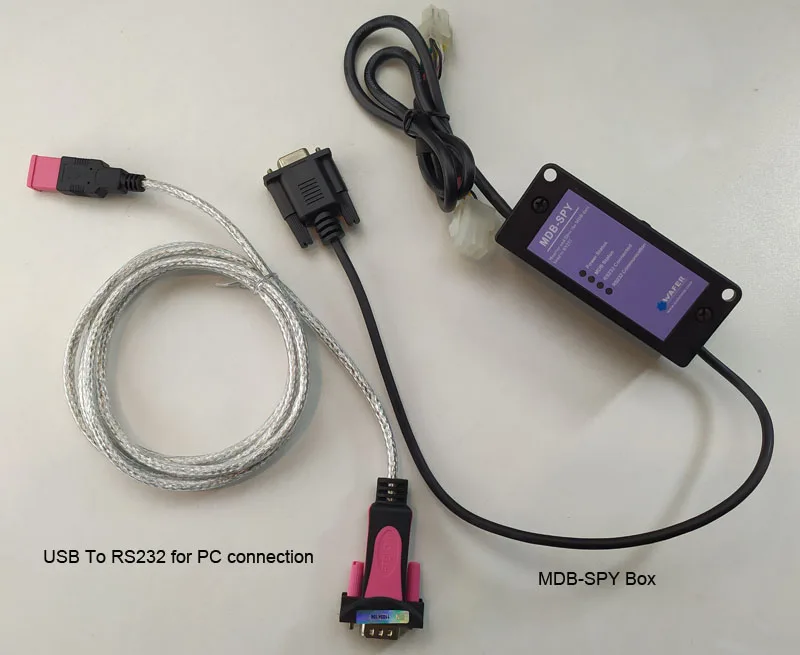

Package including:

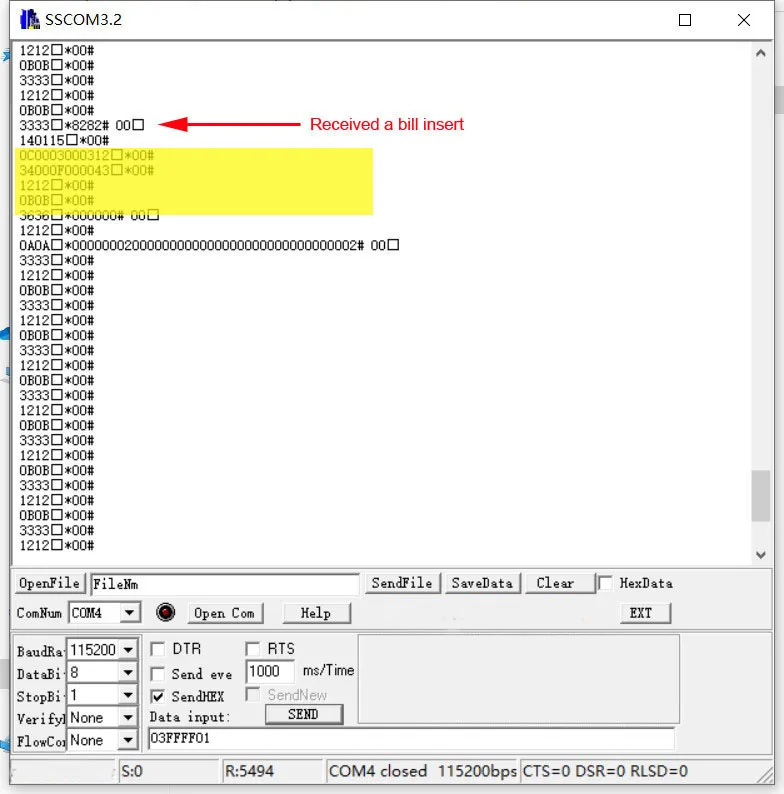

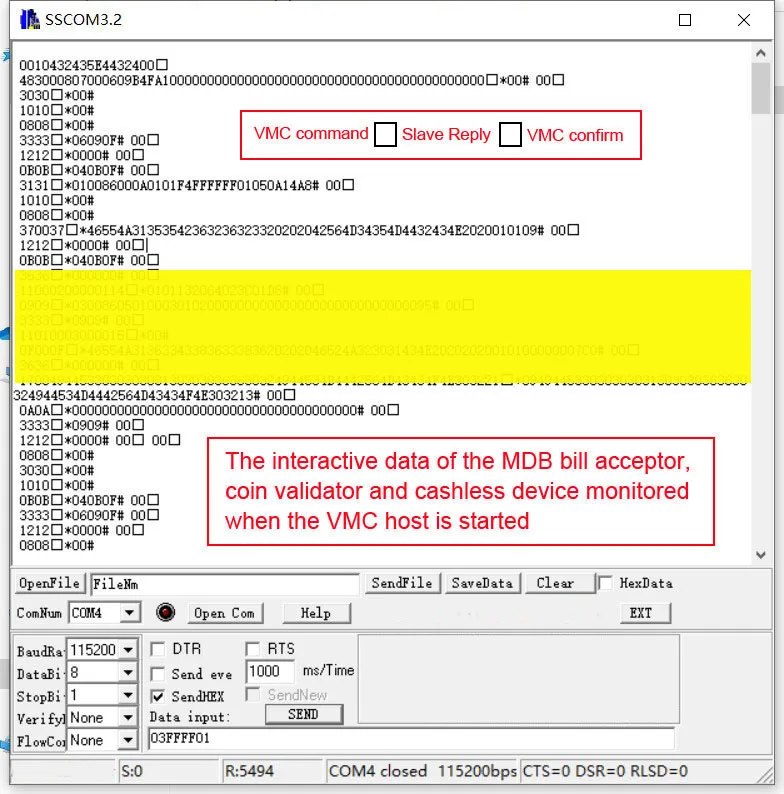

On the PC side, we only need to use a simple Serial port tool for example “sscom” software to receive data. The received data will be arranged according to the format:
